Products Description
CH42 LED Garden Spike Lights
1.Minimalist modern outdoor spike spotlights designed for residential landscape lighting.
This multi-model series includes single-head CH42, double-head CD42-A & CD42-B, flexible to match different garden layout demands. Built with robust aluminum housing, IP65 fully waterproof & IK08 anti-collision grade, suitable for year-round outdoor use. DC24V low voltage design ensures safe landscape illumination, ideal for garden paths, tree uplighting, plant accent lighting and courtyard decoration.
2. Product Version Introduction

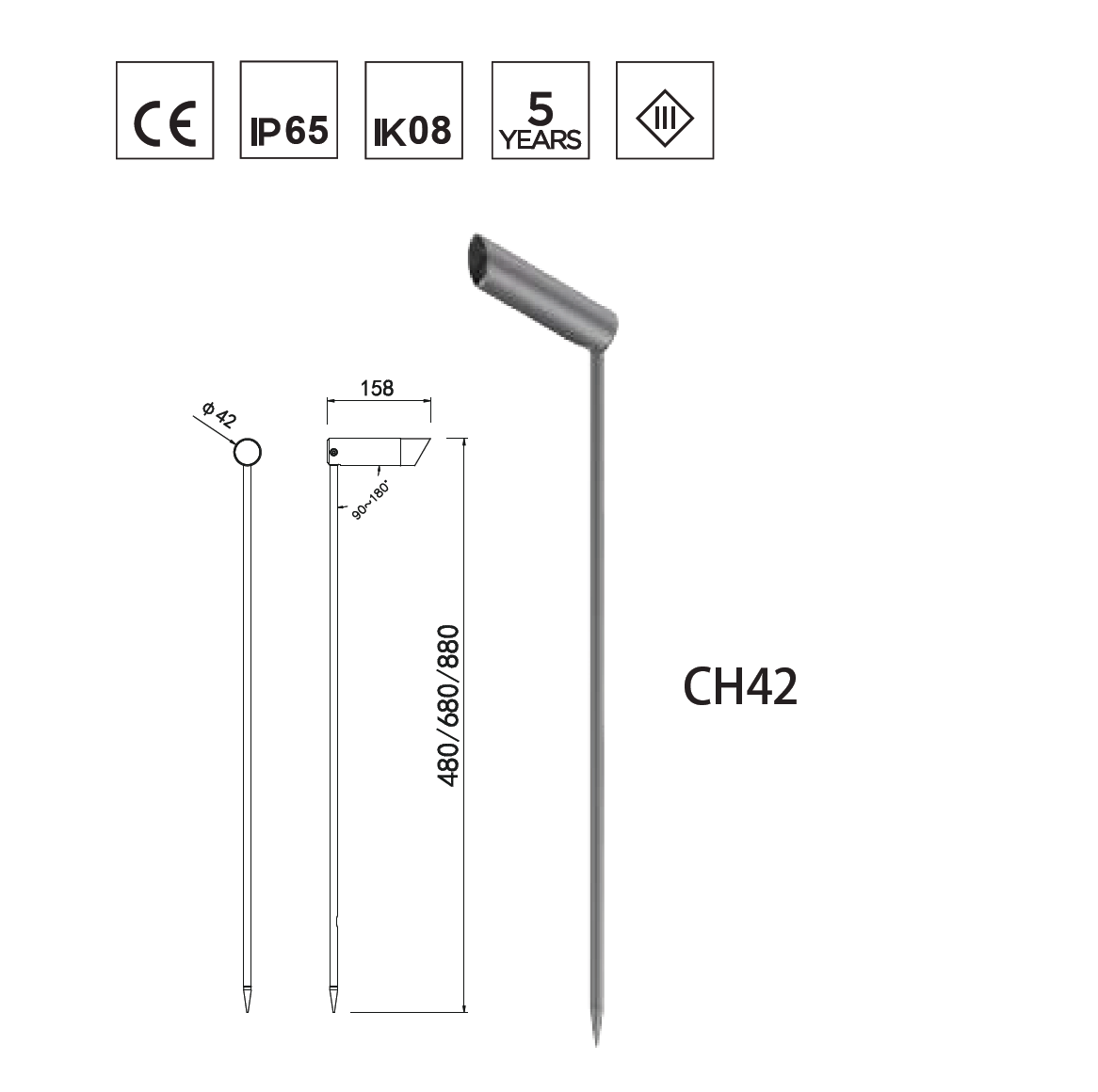

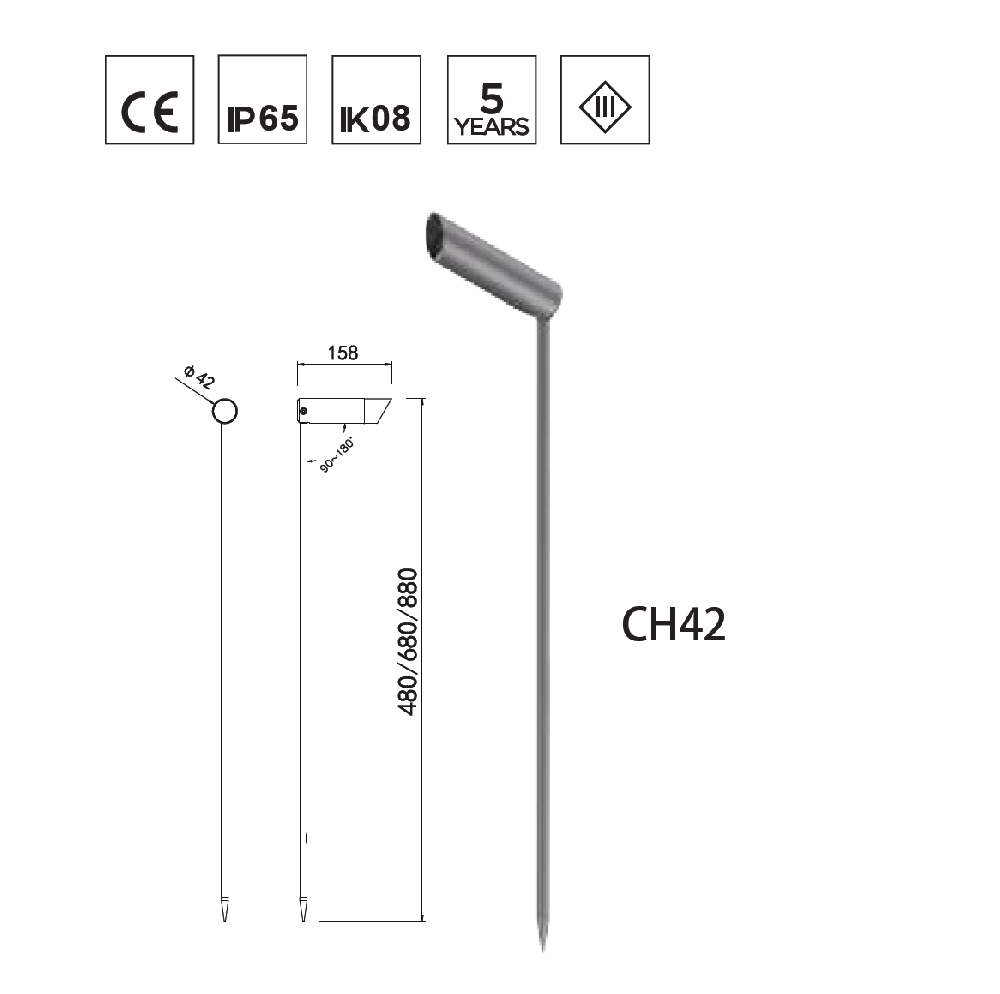

CH42 (Single Head Spike Light)
Single adjustable lamp head, height optional 400/600/800mm, compact for small plant & shrub accent lighting.

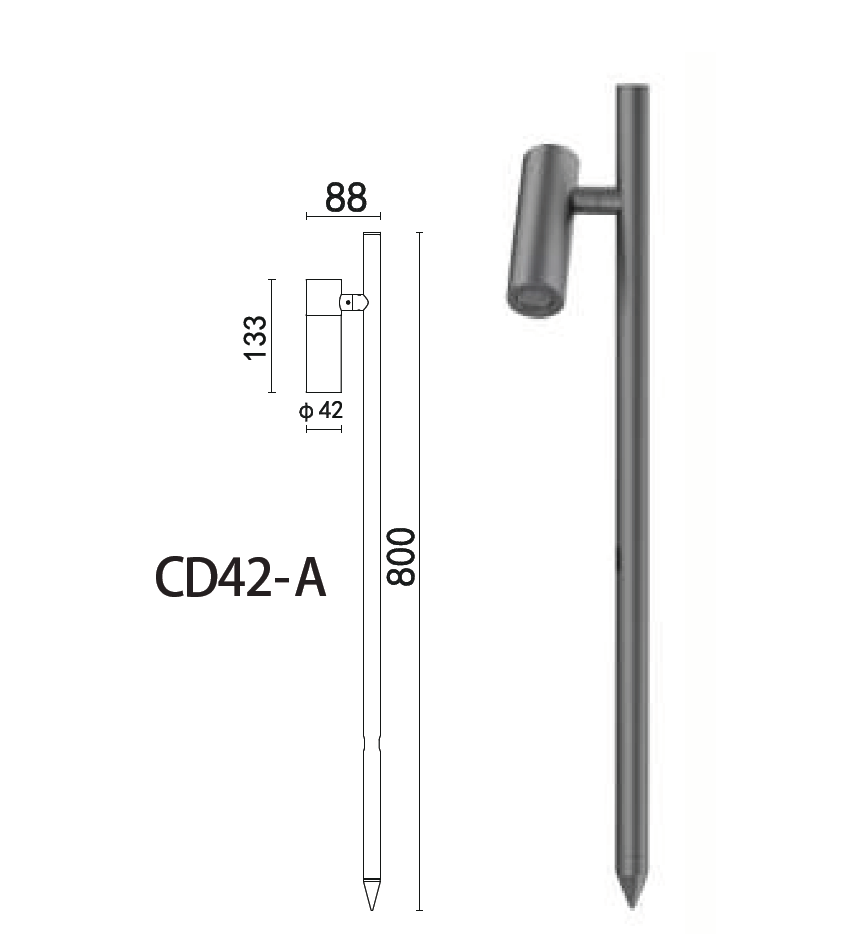

CD42-A (Double Head Side-by-Side)
Two lamp heads arranged on the same side, wider lighting coverage for border planting & long walkways.

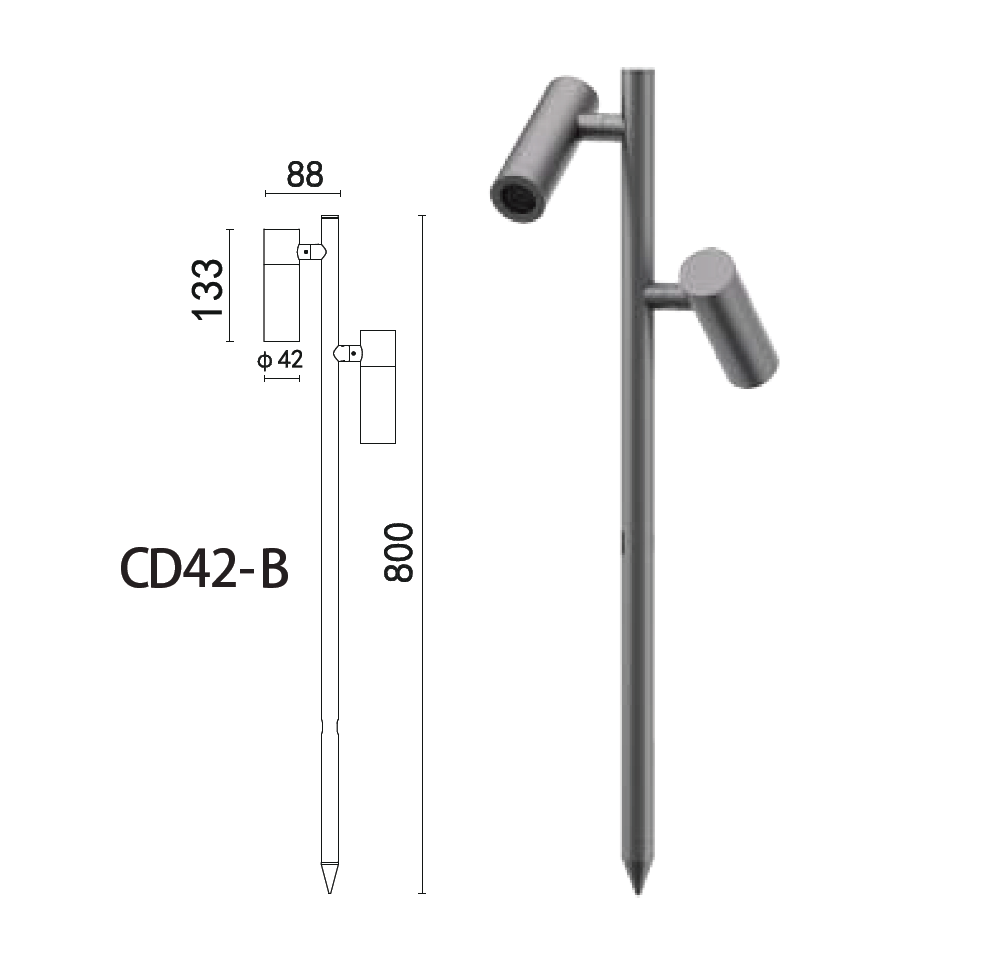

CD42-B (Double Head Opposite Layout)
Two lamp heads facing opposite directions, light two sides of garden path simultaneously.
3. Core Advantages & Key Features
✅ Multi CCT & Multi Finish Customization
3 color temperature options: 2700K warm white / 3000K natural warm / 4000K neutral white;
3 surface finishes: Matte Black RAL9005, Antique Brass, Jade Green, perfectly blend with any garden style.
✅ Adjustable Beam Angle
Interchangeable 15° / 24° / 36° beam angles, create focused tree uplight or wide soft ground ambient lighting as needed.
✅ High Protection Grade for Outdoor Use
IP65 dustproof & waterproof, withstand rain, snow and humidity; IK08 high impact resistance, anti-knock against garden stone & lawn mower collision.
✅ Safe Low Voltage DC24V Input
Low voltage power supply eliminates electric leakage risk, safe for family yards, children & pet activity areas.
✅ Long Service Lifespan
High efficiency LED chip, total 160lm output with only 4W power consumption; certified 5-year manufacturer warranty, low maintenance cost.
✅ Easy Installation with Ground Spike
Integrated metal ground spike, directly insert into lawn, gravel or soil without extra mounting base; lamp head rotatable to adjust lighting direction freely.
✅ Full Certifications Supported
CE certified, fully compliant with European outdoor lighting standards, available for global landscape project & wholesale supply.

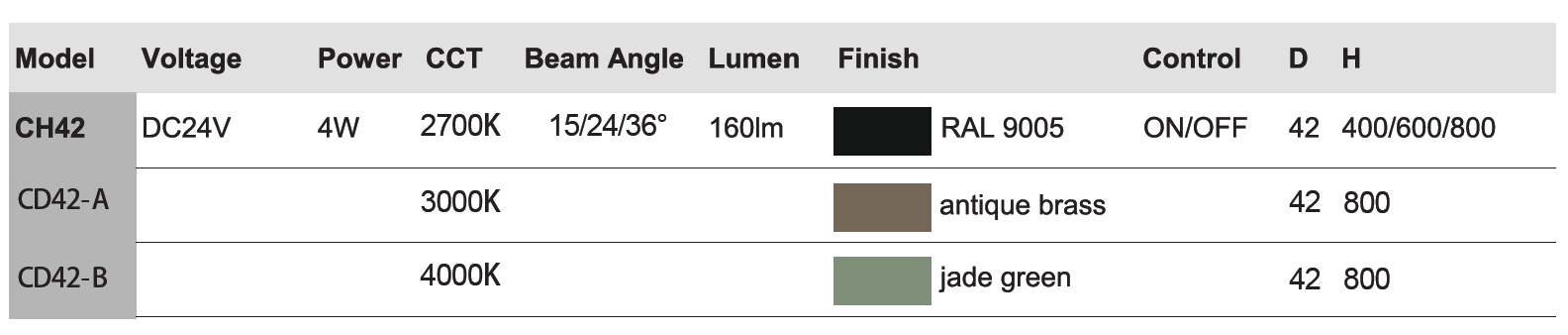

Item | Parameter Details |
Product Model | CH42 / CD42-A / CD42-B |
Input Voltage | DC24V |
Power | 4W |
CCT Option | 2700K / 3000K / 4000K |
Beam Angle | 15° / 24° / 36° adjustable |
Lumen Output | 160lm |
Surface Finish | RAL9005 Black / Antique Brass / Jade Green |
Control Mode | ON/OFF basic switch |
Spike Diameter | Φ42mm |
Spike Height | 400mm / 600mm / 800mm (CH42); fixed 800mm (CD42-A & CD42-B) |
Waterproof Grade | IP65 |
Impact Grade | IK08 |
Certification | CE |
Warranty | 5 Years |

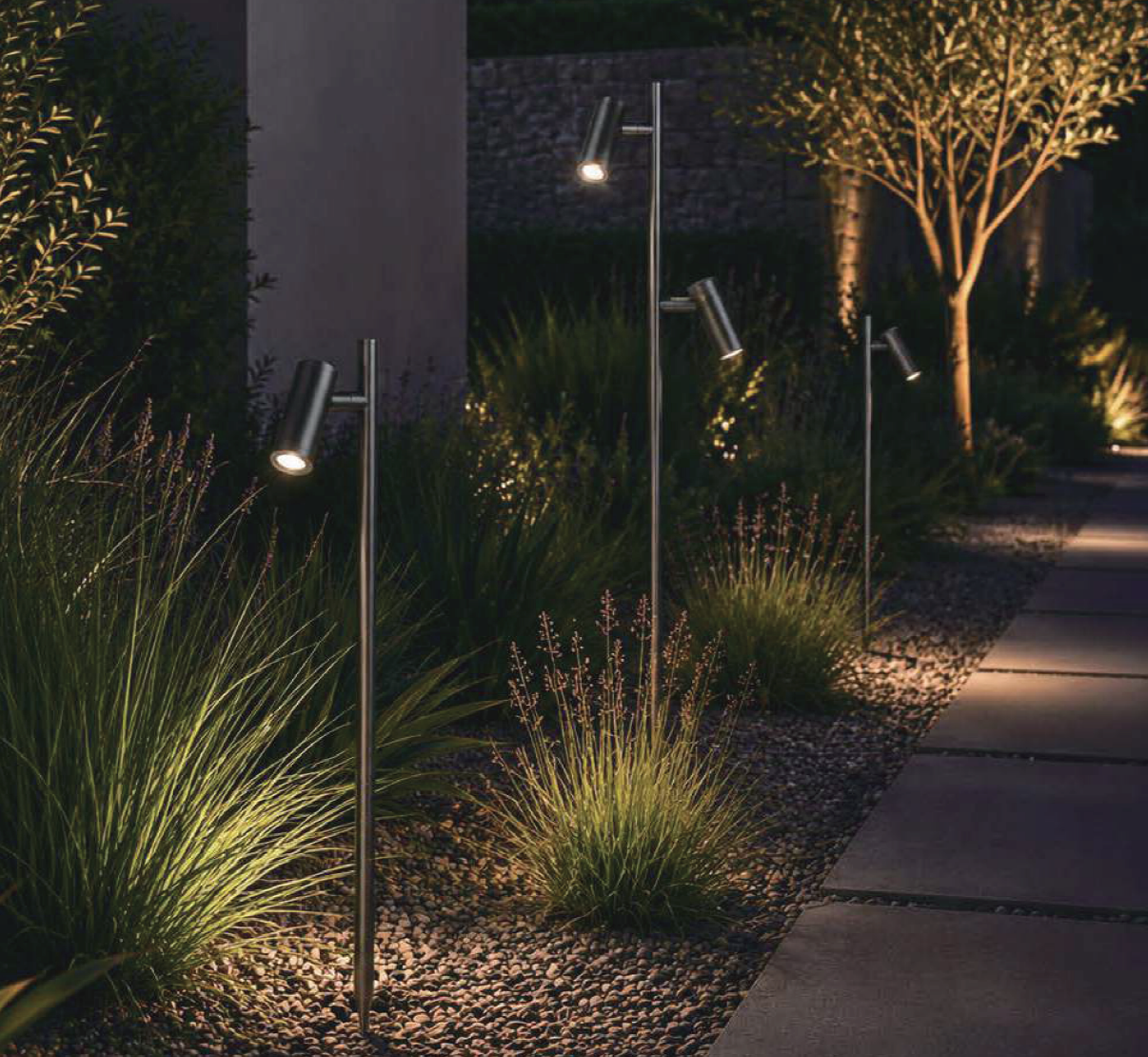

5. Application Scenarios
Villa courtyard & private garden walkway lighting
Tree uplighting, shrub & foliage accent lighting
Park, resort, hotel outdoor landscape decoration
Backyard gravel path, flower bed edge lighting
Commercial landscape engineering & outdoor project wholesale
6. Package & Custom Service
Standard export neutral carton packaging, safe for sea & air shipment
OEM & ODM available: Custom beam angle, color temperature, surface coating, logo printing
Support bulk project order & sample trial order
Full technical drawing & IES light file provided for landscape designers
7. Bottom Call to Action
Contact our sales team to get catalog, quotation and free sample for your garden lighting project!
Part 3: Short Product Summary (For Category List Preview)
CH42 series DC24V LED garden spike spotlights, single/double head optional, IP65 waterproof, 3 CCT & 3 finish options, 4W 160lm landscape spike lights for villa yard tree & path lighting, 5-year CE warranty.
