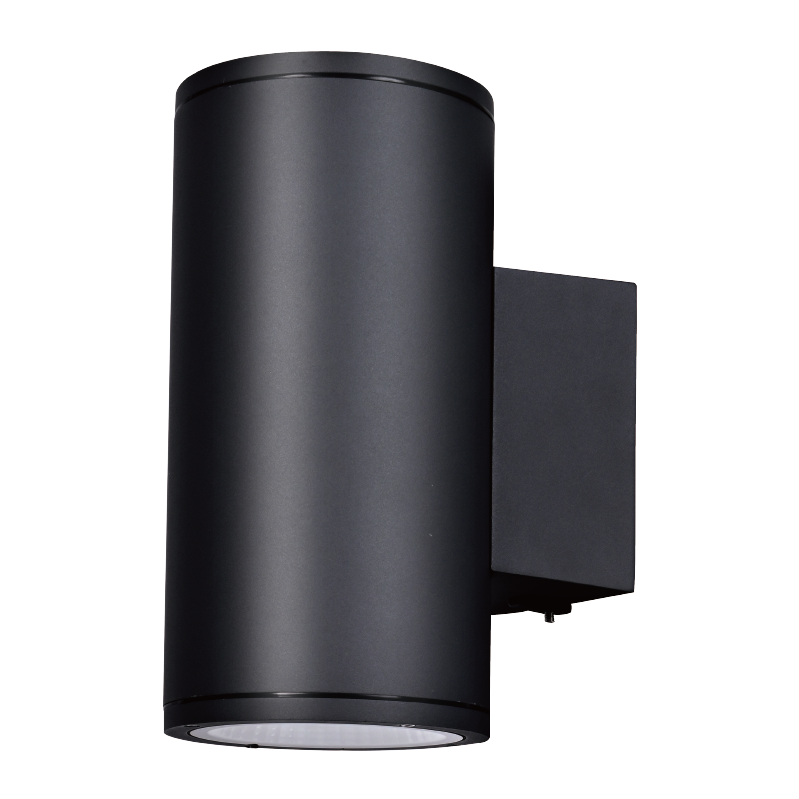

Name: WL4 Outdoor LED Wall Downlights | Facade Selection Guide
Brand: Radiant Honor
SKU: RH-124

Products Description

WL4 Outdoor LED Wall Downlights: quick selection answer

WL4 is a compact wall-mounted downlight option for projects that need a controlled light effect from the wall surface rather than from the ground. It is most relevant for facade accents, entrance walls, balcony edges, corridor walls, stair approaches and garden-wall zones where the fixture should become part of the building rhythm.

For a safe first decision, choose WL4 when the lighting plan needs a small wall fixture, a downward or near-wall beam, a repeatable housing style, and a product-family discussion before final electrical, optical and document details are confirmed. If the project needs broad uniform washing over a tall facade, compare WL4 with linear wall-wash planning instead of treating a compact downlight as a full-wall solution.

Source-backed WL family position

Selection point	What can be said safely	What still needs confirmation
Product family	WL4 belongs in the wall-light group and is presented on this page as a wall-mounted downlight option.	Final SKU sheet, drawing, finish and project file.
Supported source boundary	Customer material supports the WL Series as wall-mounted lighting for facades, balconies and corridors.	Exact WL4 version details for the project quotation.
Current page options	WL4-S80 / WL4-D80 and 6W / 12W references are shown as page options.	Final output, optic, electrical input and document request.
Best-fit intent	Compact facade wall light, entrance wall downlight, villa exterior accent, balcony or corridor wall fixture.	Mounting height, wall finish, cable direction and glare expectation.
Fact-safe limit	The page is a selection guide, not a final datasheet.	Project-specific confirmation before quotation.

When WL4 is the right starting point

Project scene	Why WL4 may fit	Planning input to collect
Villa entrance wall	A compact downlight can mark the doorway without using a ground recess.	Door height, wall material, finish color, visible cable route and preferred light direction.
Balcony or terrace facade	A repeatable wall fixture can create rhythm across small outdoor zones.	Mounting points, balcony edge detail, nearby glass and expected glare control.
Hotel corridor or exterior passage	Wall-mounted downlights can guide movement while keeping the floor clear.	Spacing, pedestrian sight line, maintenance access and control zone.
Garden wall near a path	The fixture can support low-level wayfinding without a spike or in-ground cutout.	Wall exposure, planting distance, beam direction and cable entry position.
Facade accent strip	A compact housing can create a repeated accent rather than a large flood effect.	Wall texture, shadow tolerance, viewing distance and desired visual rhythm.

WL4 versus nearby outdoor lighting choices

Option	Use it when	Do not use it when	Related page
WL4 wall downlight	The mounting point is on a wall and the project needs a compact downward or near-wall accent.	The design needs a long continuous wash across a tall facade.	Outdoor LED wall lights
WL5 square wall spotlight	The wall design calls for a square housing language.	The project requires the slimmer cylindrical look of WL4.	WL5 square wall spotlight
WL1 surface mount wall light	The zone is compact, such as a stair, small corridor or smaller wall area.	The brief calls for the stronger facade-accent presence of a larger housing.	WL1 surface mount wall light
LED in-ground uplight	The wall or column should be lit from the ground plane.	The ground cannot be cut or the cable route is easier from the wall.	LED in-ground lights
Spike or small spotlight	The fixture needs to sit in soil, planting or landscape edges.	The fixture should be fixed directly to the building wall.	Outdoor spike lights
Linear wall-wash plan	The goal is a broader, more uniform wash over a facade surface.	The desired effect is a compact local wall accent.	Wall-wash placement guide

Mounting and glare checklist for wall downlights

Confirm the exact wall surface: stone, render, concrete, metal panel, wood feature, or mixed facade material.
Confirm whether the beam should be downward only, upward and downward, grazing, or a narrow local accent.
Check whether the fixture is viewed directly by pedestrians, guests, vehicles or nearby rooms.
Record mounting height, fixture spacing, cable entry direction and access for future service work.
Compare dark and light wall finishes because the same fixture can look different on each surface.
Ask whether a mockup, drawing mark-up or simple beam note is needed before the final quotation.
Separate visual effect decisions from final electrical and document confirmation.

Buyer inputs before quotation

Input	Why it matters	Example buyer note
Project zone	Entrance, balcony, corridor and garden wall zones have different viewing distances.	"Outdoor corridor wall, repeated at each bay."
Light direction	Downward, two-way and grazing effects create different wall impressions.	"Prefer downward guidance; avoid direct view from guest rooms."
Mounting height	Height affects glare, spread and spacing.	"Wall mounting around 1.8 m, final height to be checked on drawing."
Surface and finish	Wall material and fixture finish affect visual contrast.	"Dark stone wall; black or dark bronze finish under review."
Electrical coordination	Voltage, control method and cable route must match the project plan.	"Confirm driver position and cable entry before quotation."
Document request	Some projects need a drawing, option sheet or test file before approval by the buyer team.	"Please list the documents available for this version."

Common selection mistakes

Mistake	Why it causes problems	Safer approach
Choosing by wattage only	A compact wall light is judged by beam effect, glare and placement, not wattage alone.	Review wall height, beam direction and surface reflectance together.
Treating a selection page as a datasheet	Public page wording may not include every final project detail.	Request the final option sheet for the selected version.
Ignoring cable entry	Visible cable paths can affect the facade appearance.	Mark cable direction and mounting point before confirming the quotation.
Using a compact downlight for full wall washing	The effect may become local accents rather than a broad uniform wash.	Use wall-wash planning when the design needs wide facade coverage.
Forgetting viewing angle	A fixture that looks clean on a drawing may create glare from a nearby walkway.	Check sight lines from entrances, windows, paths and seating areas.

FAQ: WL4 outdoor wall downlights

What is WL4 best used for?

WL4 is best used as a compact wall-mounted downlight for facade accents, entrance walls, balconies, corridors, stair approaches and garden-wall zones where the fixture should sit directly on the wall.

Is WL4 a wall washer?

WL4 can support a near-wall accent effect, but a compact wall downlight should not automatically be treated as a full linear wall-wash solution. For broad facade washing, compare the wall-wash placement guide and confirm the required effect.

Can this page be used as a final datasheet?

No. This page is a selection guide. Final version data should be confirmed with the quotation file, drawing or customer-requested project document.

Which project scenes should be checked first?

Start with the wall location, mounting height, wall material, cable route, light direction, viewing angle and finish color. These inputs usually decide whether WL4 is a good starting point.

How does WL4 compare with in-ground uplights?

WL4 mounts on the wall and keeps the ground surface clear. In-ground uplights light from the ground plane and may be better when the wall needs upward emphasis or when the fixture should stay visually hidden.

What should buyers confirm before quotation?

Confirm selected version, quantity, finish, mounting surface, cable route, light direction, electrical input, control expectation and required project documents before quotation.

Can WL4 be used across repeated facade zones?

Yes, it can be discussed as a repeatable wall-light family, but spacing, mounting height, viewing angle and final version details should be checked before a project-wide selection is fixed.

Related Radiant Honor pages

Use these pages to compare WL4 with nearby product families and planning guides before the final quotation file is prepared.
