Products Description

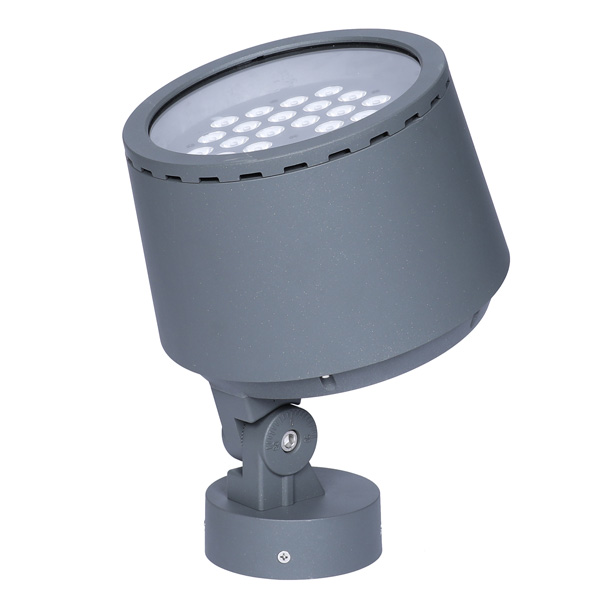

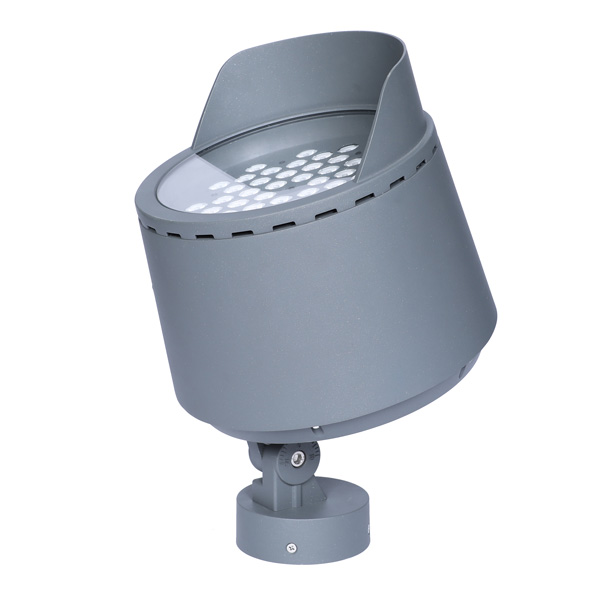

Quick Answer for 80W Landscape Spotlight With Base Selection
80W landscape spotlight with base is a strong outdoor projection reference for larger facade details, monuments, sculptures, signs, mature trees, entrance zones, and small-to-medium plaza features where a stable surface-mounted base is preferred. Use this page as a project planning guide: final beam, wiring, finish, colour mode, control method, outdoor protection target, mounting detail, and project file set should be confirmed for the selected order configuration.
Customer material supports 80W-class outdoor spotlight context across catalogue and selection-table material, but that context should not be copied as fixed public promises. This rewrite keeps the useful selection intent while removing unsupported defaults.
Source-Safe Product Positioning
| Item | Fact-safe reference | Planning meaning |
|---|---|---|
| Product role | 80W outdoor landscape spotlight with base | Use for stronger projection where compact fixtures may be too weak and very large flood lights may be excessive. |
| Mounting style | Base-mounted planning reference | Useful for concrete pads, stone edges, platforms, low walls, building setbacks, and prepared hardscape surfaces. |
| Application fit | Facade, monument, tree, sculpture, sign, and plaza-feature planning | Confirm target size, surface colour, viewer direction, and setback before selecting beam and quantity. |
| Power class | 80W page reference within outdoor spotlight families | Compare by target size and mounting distance rather than choosing by wattage alone. |
| Final configuration | Project-confirmed | Beam, colour mode, control method, wiring, finish, and project files should be confirmed before production. |
Where an 80W Base-Mounted Spotlight Fits
| Scene | Why this format can fit | Selection note |
|---|---|---|
| Facade bay or entrance wall | A prepared base can place the fixture on a ledge, setback, low wall, platform, or paved edge. | Check glare toward windows, balconies, doors, seating, and pedestrian routes. |
| Monument or sculpture | Stronger directional projection can isolate a larger object from surrounding landscape light. | Match target size, viewer direction, desired contrast, and surface brightness. |
| Mature tree or tall planting | The base style can work where soil placement is unstable or where service access is easier from hardscape. | Confirm root-zone limits, cable path, setback, and aiming angle. |
| Sign or architectural marker | Directional projection can help highlight vertical details from a controlled hardscape position. | Review spill light, sign material, and reflection toward nearby paths. |
| Plaza feature or gateway | A stable base can keep the fixture aligned in a public or semi-public outdoor area. | Check pedestrian clearance, cable protection, and maintenance access. |
Beam, Placement, and Glare Planning
| Decision | Use this approach when | What to check |
|---|---|---|
| Narrow accent | The target is a column, tall tree trunk, monument edge, sign feature, or sculptural detail. | Check hotspot strength, aiming tolerance, and whether the beam misses the wider surface. |
| Medium projection | The target is a wall bay, planting group, entrance feature, or medium landscape object. | Review fixture spacing and whether the beam edge is too sharp. |
| Wide soft coverage | The target is close, broad, or highly reflective. | Check spill light toward paths, windows, seating, and neighbouring walls. |
| Low base position | The fixture sits near paving, planters, steps, or low walls. | Review visible source angle from normal walking height. |
| Raised hardscape position | The base sits on a wall cap, platform, or architectural ledge. | Confirm fixing method, cable route, and service access before installation closes. |
Site Inputs Before Quotation
| Input | Why it matters | Buyer detail to send |
|---|---|---|
| Target object | Beam and quantity depend on object size, height, and material. | Facade bay, monument, tree, sculpture, sign, planter, gateway, or plaza feature. |
| Fixture position | Setback and height change beam spread, brightness, and glare risk. | Distance from target, mounting height, aiming direction, and viewing angle. |
| Mounting surface | Concrete, stone, metal, timber, and wall caps need different fixing details. | Send surface material, thickness, and a close photo of the mounting zone. |
| Cable route | A clean cable path affects layout, service access, and visual finish. | Mark cable direction, conduit route, and any hidden wiring requirement. |
| Outdoor environment | Rain, irrigation, dust, coastal air, heat, and drainage affect the required protection target. | Describe exposure, drainage, planter edges, roof cover, and maintenance access. |
Selection Comparison
| Option | Use when | Planning note |
|---|---|---|
| 80W spotlight with base | The project needs stronger projection from a prepared surface. | Good for larger facade details, monuments, mature trees, sculptures, signs, and plaza features. |
| Lower-output base-mounted spotlight | The target is smaller, closer, or sensitive to glare. | Compare when the design needs a softer effect or shorter setback. |
| Higher-output flood light | The target is much larger, farther away, or needs broad area coverage. | Compare only after target size, setback, and glare tolerance are known. |
| Spike-mounted spotlight | The fixture should be placed in soil, lawn, or planting areas. | Choose this when mounting method matters more than a hard-surface base. |
| Pole-mounted spotlight | The beam needs to be raised above plants, paths, or low walls. | Check pole height, clamp method, wind exposure, and service access. |
Related Planning Pages
| Page | Use it for |
|---|---|
| High-power outdoor spotlight category | Compare stronger outdoor projection options by scene and mounting distance. |
| Compact flood and spot light category | Compare smaller projection options and accessory-supported layouts. |
| Beam angle guide | Plan narrow, medium, and wide effects before confirming layout. |
| Accessory planning guide | Review glare, mounting, aiming, and power-protection accessories. |
| Download centre | Review available catalogues and project reference materials. |
| Contact Radiant Honor | Send drawings, site photos, target distance, and selection requirements. |
FAQ
What is an 80W landscape spotlight with base best used for?
It is best used as a strong outdoor projection reference for larger facade details, monuments, mature trees, sculptures, signs, and small-to-medium plaza features where a surface-mounted base is preferred.
Is this page a fixed datasheet?
No. It is a project-selection reference. Final beam, colour mode, control method, finish, cable route, outdoor protection target, and project file set should be confirmed for the selected order configuration.
How should the beam be selected?
Start from target size, setback, mounting height, and viewer direction. A narrow beam can isolate a detail, while a wider beam can soften coverage on nearby surfaces.
When should a base-mounted version be compared with a pole-mounted version?
Compare them when the beam could either start from a prepared hard surface or be raised above plants, walls, or pedestrian areas. The better choice depends on target height, glare risk, cable route, and service access.
What site details are needed before quotation?
Send the target object, mounting surface, distance from target, desired effect, cable route, viewing direction, outdoor exposure, and any drawing or file expectations.
How should colour and control requirements be handled?
Treat colour and control as project-specific choices. State the required scene, switching method, dimming need, and controller environment before finalizing the configuration.
What is the main selection mistake to avoid?
Do not choose by wattage alone. A good layout starts with target size, mounting point, beam angle, glare tolerance, cable route, and maintenance access.
