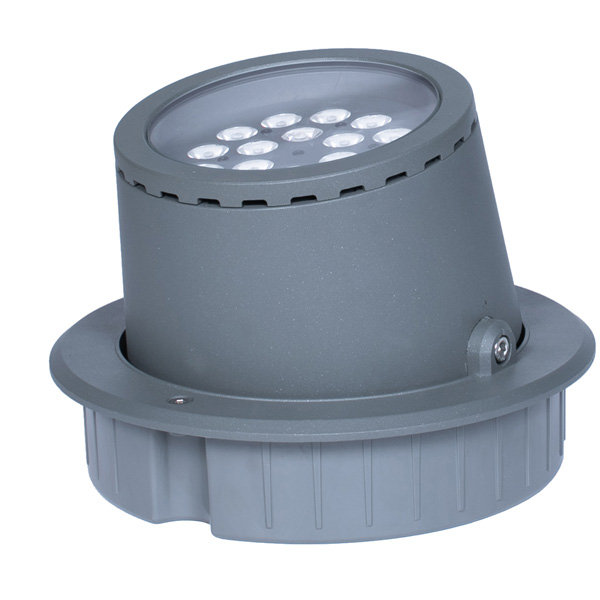

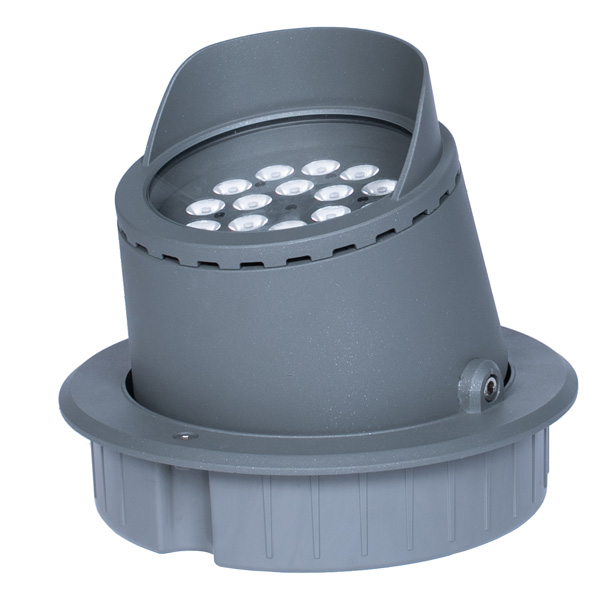

48W Landscape LED In-Ground Light | Recessed Projection Lighting
48W Landscape LED In-Ground Light | Recessed Projection Lighting

48W Landscape LED In-Ground Light | Recessed Projection Lighting

48W landscape LED in-ground light for courtyards, public walkways, medium trees, low facades, and recessed landscape projection. Color output, control method, optics and protection target are confirmed per project.
Send Inquiry

Products Description

Buyer application note: The 48W Landscape LED In-Ground Light | IP67 Recessed Projection Lighting is a 48W LED in-ground light for recessed facade, plaza, pathway and landscape uplighting projects. Before quotation, confirm mounting position, beam angle, CCT or RGB/RGBW control, cable entry, accessory requirements, and available compliance documents for the target market.

Project selection path: When specifying 48W Landscape LED In-Ground Light, compare 120W LED In-Ground Light | IP67 High-Output Recessed Uplight, WL4 LED Wall Downlights | 6W & 12W IP65 Outdoor Facade Wall Lights, 3W Mini LED Garden Spike Spotlight | IP66 RGBW DMX Accent Light, How to Choose LED In-Ground Lights for Facades, Plazas and Landscape Projects to confirm beam angle, mounting, glare control, waterproof protection and quotation details before final selection.

This 48W IP67 waterproof architectural and landscape LED inground spotlight. Designed for a wide range of applications including buildings, wall facades, gardens, trees and more, this spotlight is perfect for those looking for an efficient and versatile lighting solution. With CREE or OSRAM LED technology, this spotlight offers superior illumination and is built to withstand harsh outdoor environments. The fixture is designed to be installed into the ground with an adjustable body above the ground for easy positioning and flexibility. This makes it a great option for those looking to highlight specific areas of their outdoor space.

Features

  • Die-casting aluminum alloy with UV resistant paint

  • Optical grade PMMA lens + 8MM tempered glass

  • DMX optional RGB RGBW LED Flood Light

  • DC24V Input for more safety outdoor application

  • CREE/OSRAM LEDs with 90+ Lumens per Watt

  • Superior Optical Design with 8° /15°/ 30°/45°/60°

  • International Certification: compliance documents confirmed per project

Model No.Q175-48W
Input VoltageAC100-240V or DC24V
PF>0.85
Power Consumption48W
LEDCREE or LUMILEDS LED
LED Lifetime>50000 hours
CCT1800K-6000K / Single Color / RGB
CRIRa>80
Luminous Flux3800lm
Beam Angle8° /15°/ 30°/45°/60°
ControlON/OFF  or  DMX
Main MaterialDie-cast Aluminum + Tempered Glass
Shell ColorSilver gray
DimensionsØ270*H184mm
Weight2.5KG
IP RatingIP67
MountingRecessed inground
Working Temperature-20℃~45℃
Storage Temperature-30℃~50℃
Humidity15%-90%RH
CertificationCE RoHS


Selection Guide

The 48W version works well when a project needs a step up from 36W for stronger coverage, longer throw, or larger highlighted features while still keeping a recessed ground installation. It is suitable for courtyards, tree uplighting, public walkways, low facades, and commercial landscape accents.

Related Power Options

In-Ground Light Selection Notes

This 48W higher-output LED in-ground spotlight is intended for recessed outdoor lighting projects where the fixture needs to sit flush with paving, soil edges or architectural ground details. Compared with surface-mounted spotlights, in-ground fixtures require more attention to drainage, sleeve depth, cable protection and maintenance access. Confirm these points before ordering, not after the site is already paved.

Best-Fit Applications

The 48W model is suitable for larger trees, taller wall accents, stronger garden nodes and commercial entrance lighting. Use narrower beam angles for taller targets or longer throw, and use wider beams when the lighting goal is softer wall wash or close-distance coverage. If people will walk near the fixture, check glare direction and surface temperature expectations with the project team.

Installation and Drainage Planning

For in-ground lighting, a dry and serviceable installation is critical. Plan a drainage layer below the fixture, leave enough cable service length, avoid direct water pooling, and confirm whether the site needs an installation sleeve or custom recess. For coastal, wet or heavily irrigated landscapes, discuss sealing and maintenance routines before final approval.

Quotation Checklist for Project Buyers

  • Target type, projection distance and expected beam angle.
  • Ground material: paving, concrete, soil, deck or stone detail.
  • Drainage condition, installation sleeve requirement and cable exit route.
  • Color temperature, RGB/RGBW, dimming or DMX512 requirement if applicable.
  • Need for product drawings, IES files or datasheets from the download center.

Related Recessed and Outdoor Options

Compare this model with nearby wattages before confirming the layout. Lower wattages are better for close accents; higher wattages are more suitable for larger targets or longer projection. For full category comparison, review LED in-ground lights, LED garden spike lights, high-power flood lights, and the beam angle/IP/DMX512 outdoor lighting guide.

FAQ

What is the biggest risk with in-ground lights?
Poor drainage and difficult maintenance access are usually bigger risks than wattage selection. The installation detail should be confirmed early.

How do I choose the right wattage?
Match wattage to target size and throw distance. A site drawing or photo helps decide whether 36W, 48W, 60W or 80W is appropriate.

Related guides for project selection

Review the In-ground light selection guide. Review the IP, material and control guide. Review the in-ground and wall wash combination guide. For documents and quotation details, use the download center or contact Radiant Honor for project support.
