Products Description

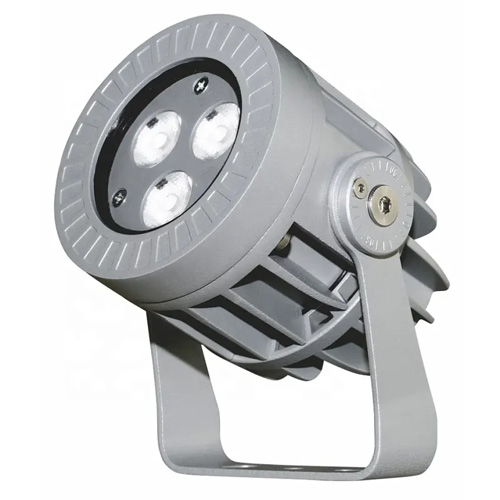

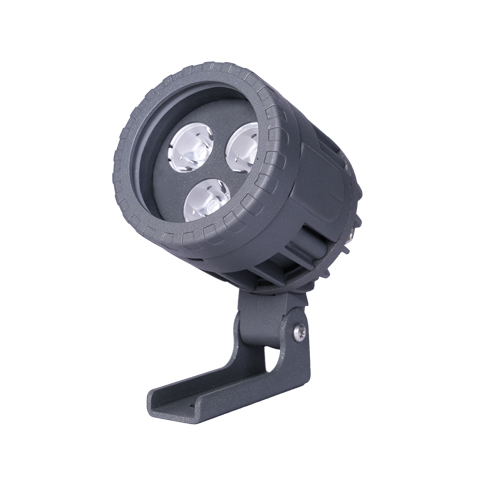

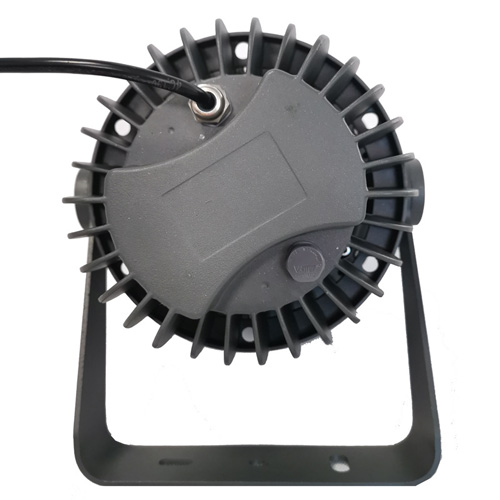

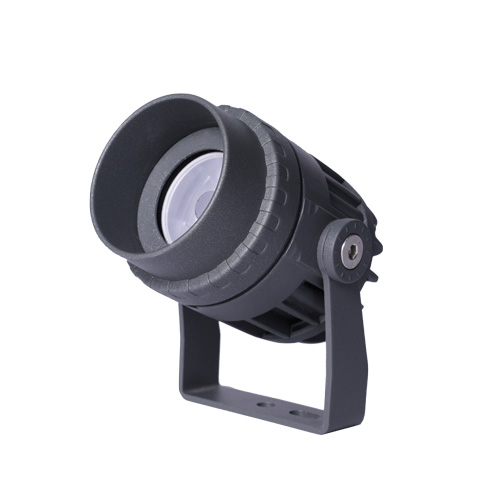

This 9W outdoor LED spotlight with lampshade is designed for decorative garden and pathway lighting where a softer visual effect is preferred. The lampshade helps shape a more comfortable accent glow for flower beds, lawn edges, courtyard details, and ornamental landscape features while keeping the fixture suitable for outdoor architectural use.
Project selection path: When specifying 9W LED Spotlight with Lampshade, compare 3W Mini LED Garden Spike Spotlight | IP66 RGBW DMX Accent Light, S Series LED Garden Spike Lights | 1W-15W Low-Power Landscape Accent Lighting, Z Series COB LED Landscape Spot Lights | 10W-30W Outdoor Accent Lighting, 3W Square LED Spotlight | IP67 Garden Wall Accent Light to confirm beam angle, mounting, glare control, waterproof protection and quotation details before final selection.
Features
DMX optional RGB RGBW LED Flood Light
DC24V Input for more safety outdoor application
CREE/OSRAM LEDs with 90+ Lumens per Watt
Superior Optical Design with 8° /15°/ 30°/45°/60°
International Certification: compliance documents confirmed per project
Architectural Floodlighting, Facade Lighting
Landscape Lighting, Garden Spotlighting
| Model No. | D85-9W |
|---|---|
| Input Voltage | AC100-240V or DC24V |
| PF | >0.85 |
| Power Consumption | 9W |
| LED | CREE or LUMILEDS LED |
| LED Lifetime | >50000 hours |
| CCT | 1800K-6000K / Single Color / RGB |
| CRI | Ra>80 |
| Luminous Flux | 720lm |
| Beam Angle | 8° /15°/ 30°/45°/60° |
| Control | ON/OFF or DMX |
| Main Material | Die-cast Aluminum + Tempered Glass |
| Shell Color | Silver gray |
| Dimensions | Ø85*96*115mm |
| Weight | 0.8KG |
| IP Rating | IP67 |
| Mounting | Bracket for Surface Mount |
| Working Temperature | -20℃~45℃ |
| Storage Temperature | -30℃~50℃ |
| Humidity | 15%-90%RH |
| Certification | CE RoHS |
Selection Guide
The 9W lampshade version is intended for decorative landscape accents where a softer look is preferred over a direct exposed spotlight effect. It works well for pathways, flower beds, lawn edges, boutique hospitality gardens, and residential outdoor scenes that need controlled low-wattage highlighting.
Related Garden Spotlight Options
- 15W Outdoor LED Spotlight for stronger general garden and facade projection.
- 24W Outdoor LED Spotlight for medium-output landscape lighting.
- 9W Square Landscape LED Spotlight for a square-body accent option.
- S Series LED Garden Spike Lights to compare the broader low-power garden family.
- Download Center for technical references, and contact us for quotations and application support.
Project Selection Notes
This outdoor LED spotlight is best considered for facades, garden walls, monuments, site accents, commercial landscapes, and outdoor architectural projection. Select the model by target size, mounting distance, beam angle, color mode, and installation method instead of wattage alone.
Planning Checklist Before Quotation
- Confirm the target object, lighting distance, mounting position, and required aiming direction.
- Confirm whether the project needs white, RGB, or RGBW lighting and whether DMX512 control is required.
- Check beam angle, glare direction, power supply plan, cable route, and outdoor exposure conditions.
- Send drawings or site photos so the fixture, mounting method, and accessories can be checked together.
Related Products and Selection Guide
For medium and high-output projection, compare V Series LED flood lights, 600W high-power flood lights, and 1200W RGBW DMX flood lights. For general specification planning, read the beam angle, IP rating and DMX512 RGBW guide or visit the catalog and datasheet downloads.
FAQ
How do I choose the right wattage?
Start from target size, projection distance, beam angle, and desired brightness. Similar wattage can perform differently depending on mounting and optics.
When should RGBW or DMX512 be selected?
Use RGBW and DMX512 when the project needs controlled color scenes, zoning, or scheduled lighting effects.
What should I send for a quote?
Send project photos, drawings, quantity, installation location, color mode, control method, and beam angle preference.
Related guides for project selection
Review the beam angle guide for facade and landscape lighting. Review the early confirmation guide for reducing rework. Review the sample approval workflow. For documents and quotation details, use the download center or contact Radiant Honor for project support.
