Products Description
Buyer application note: The 36W Garden Spike Spotlight | IP67 Outdoor Landscape Uplight is a 36W outdoor spotlight for garden, tree, facade accent and landscape projection projects. Before quotation, confirm mounting position, beam angle, CCT or RGB/RGBW control, cable entry, accessory requirements, and available compliance documents for the target market.
Project selection path: When specifying 36W Garden Spike Spotlight, compare 3W Mini LED Garden Spike Spotlight | IP66 RGBW DMX Accent Light, S Series LED Garden Spike Lights | 1W-15W Low-Power Landscape Accent Lighting, Z Series COB LED Landscape Spot Lights | 10W-30W Outdoor Accent Lighting, 3W Square LED Spotlight | IP67 Garden Wall Accent Light to confirm beam angle, mounting, glare control, waterproof protection and quotation details before final selection.

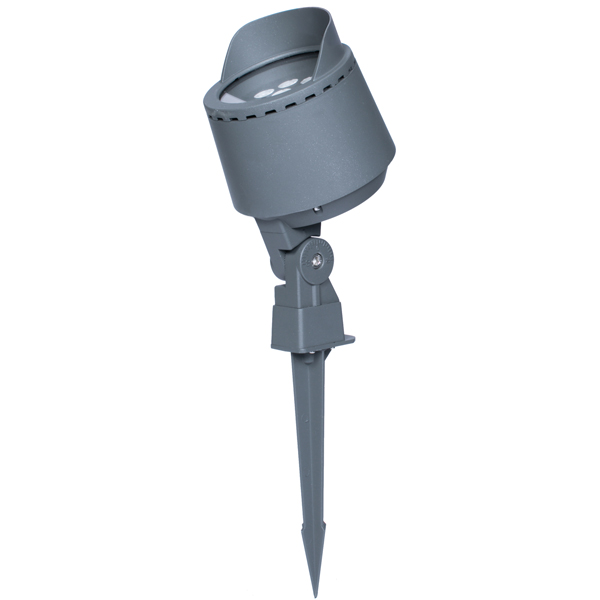

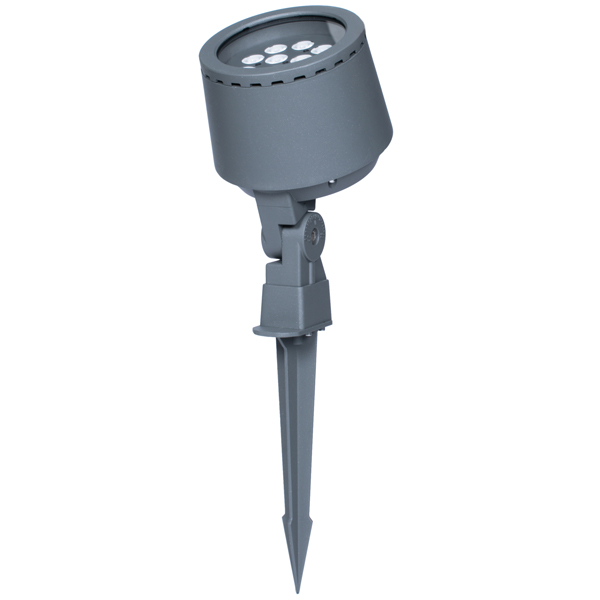

This 36W IP67 waterproof LED Spotlight with high power CREE LED. For projects involving a building facade, highlighting a tree, or showcasing a sculpture, this spotlight is designed to deliver outstanding performance. With its advanced waterproofing capabilities, this spotlight can withstand harsh weather conditions, making it the practical option for outdoor applications. The high power CREE LED provides brilliant illumination, while the adjustable joint allows for easy and precise angle adjustments. Upgrade your outdoor lighting with the IP67 waterproof LED Spotlight and support a cleaner outdoor lighting result.
Features
Die-casting aluminum alloy with UV resistant paint
Optical grade PMMA lens + 8MM tempered glass
DMX optional RGB RGBW LED Flood Light
DC24V Input for more safety outdoor application
CREE/OSRAM LEDs with 90+ Lumens per Watt
Superior Optical Design with 8° /15°/ 30°/45°/60°
International Certification: compliance documents confirmed per project
| Model No. | Q155B-36W |
|---|---|
| Input Voltage | AC100-240V or DC24V |
| PF | >0.85 |
| Power Consumption | 36W |
| LED | CREE or LUMILEDS LED |
| LED Lifetime | >50000 hours |
| CCT | 1800K-6000K / Single Color / RGB |
| CRI | Ra>80 |
| Luminous Flux | 2800lm |
| Beam Angle | 8° /15°/ 30°/45°/60° |
| Control | ON/OFF or DMX |
| Main Material | Die-cast Aluminum + Tempered Glass |
| Shell Color | Silver gray |
| Dimensions | Ø175*H589mm |
| Weight | 2.0KG |
| IP Rating | IP67 |
| Mounting | Spike |
| Working Temperature | -20℃~45℃ |
| Storage Temperature | -30℃~50℃ |
| Humidity | 15%-90%RH |
| Certification | CE RoHS |
Project Selection Notes
This spike-mounted outdoor spotlight is intended for soil, lawn, and planting-bed installation where the lighting direction may need adjustment after landscape work is completed. It is suitable for tree uplighting, garden features, sculpture lighting, and flexible landscape accents.
Before Requesting a Quote
- Confirm target object, mounting distance, and approximate installation height.
- Confirm white, RGB, or RGBW color requirement and whether DMX512 control is needed.
- Confirm beam angle preference, quantity, cable route, and outdoor exposure conditions.
- Send drawings or site photos so fixture power, aiming, mounting, and accessories can be checked together.
Related Products and Guides
For smaller accents, compare the 3W mini garden spike spotlight. For recessed hardscape installation, see LED in-ground lights. For compact base or wall accents, review compact flood and spot lights. For a broader selection workflow, read the beam angle, IP rating and DMX512 RGBW outdoor lighting guide, or visit the catalog and datasheet downloads.
FAQ
How should this spotlight be selected?
Start from the target size, mounting distance, installation surface, color mode, and required beam angle rather than wattage alone.
Can it be used in RGB or RGBW projects?
Several Radiant Honor outdoor spotlight ranges support RGB/RGBW and DMX project options, but the exact configuration should be confirmed by model and project requirement.
What information helps quotation accuracy?
Project photos, drawings, quantity, color mode, control method, beam angle preference, and mounting condition are the most useful details.
Procurement Checklist for This Model
This 36W landscape LED garden spike spotlight is mainly used for larger shrubs, trees, landscape nodes and outdoor projection from ground-mounted spike positions. Before confirming the order, review the practical project details below so the selected fixture, beam angle, mounting method and control option match the real installation environment.
- Application zone, target size and approximate projection or viewing distance.
- Mounting method, mounting height, cable direction and maintenance access.
- Beam angle, color temperature, RGB/RGBW, dimming or DMX512 requirement.
- Outdoor exposure, glare direction, accessory requirement and power supply position.
- Drawings, IES files, datasheets or installation references needed from the download center.
