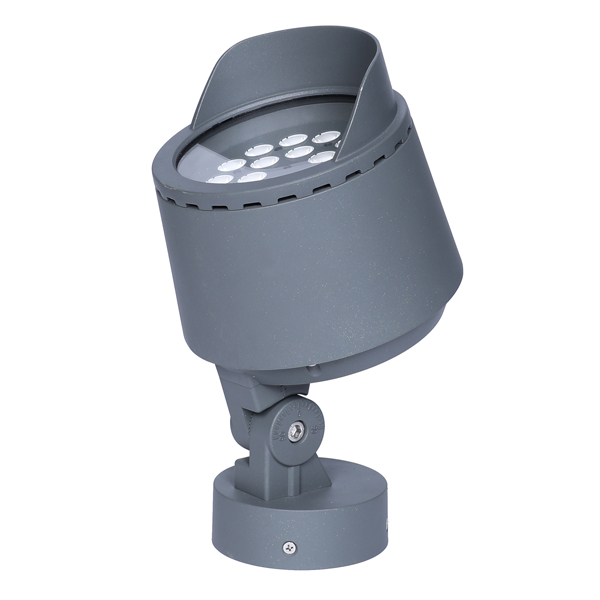

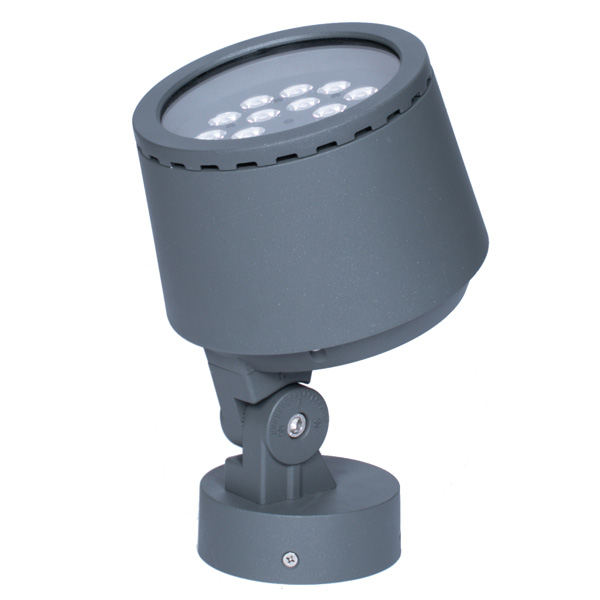

Name: 48W Landscape LED Spotlight with Base | IP67 Outdoor Projection Light
Brand: Radiant Honor
SKU: RH-105

Products Description

Buyer application note: The 48W Landscape LED Spotlight with Base | IP67 Outdoor Projection Light is a 48W outdoor spotlight for compact facade, signage, garden and architectural accent lighting projects. Before quotation, confirm mounting position, beam angle, CCT or RGB/RGBW control, cable entry, accessory requirements, and available compliance documents for the target market.

Project selection path: When specifying 48W Landscape LED Spotlight with Base, compare 3W Square LED Spotlight | IP67 Garden Wall Accent Light, Z Series COB LED Landscape Spot Lights | 10W-30W Outdoor Accent Lighting, S Series LED Garden Spike Lights | 1W-15W Low-Power Landscape Accent Lighting, 120W RGBW LED Spotlight | IP67 DMX Outdoor Architectural Light to confirm beam angle, mounting, glare control, waterproof protection and quotation details before final selection.

his 48W IP67 waterproof LED Spotlight with high power CREE LED. For projects involving a building facade, highlighting a tree, or showcasing a sculpture, this spotlight is designed to deliver outstanding performance. With its advanced waterproofing capabilities, this spotlight can withstand harsh weather conditions, making it the practical option for outdoor applications. The high power CREE LED provides brilliant illumination, while the adjustable joint allows for easy and precise angle adjustments. Upgrade your outdoor lighting with the IP67 waterproof LED Spotlight and support a cleaner outdoor lighting result.

Features

Die-casting aluminum alloy with UV resistant paint
Optical grade PMMA lens + 8MM tempered glass
DMX optional RGB RGBW LED Flood Light
DC24V Input for more safety outdoor application
CREE/OSRAM LEDs with 90+ Lumens per Watt
Superior Optical Design with 8° /15°/ 30°/45°/60°
International Certification: compliance documents confirmed per project

Model No.	Q155A-48W
Input Voltage	AC100-240V or DC24V
PF	>0.85
Power Consumption	48W
LED	CREE or LUMILEDS LED
LED Lifetime	>50000 hours
CCT	1800K-6000K / Single Color / RGB
CRI	Ra>80
Luminous Flux	3800lm
Beam Angle	8° /15°/ 30°/45°/60°
Control	ON/OFF or DMX
Main Material	Die-cast Aluminum + Tempered Glass
Shell Color	Silver gray
Dimensions	Ø196*H277mm
Weight	2.5KG
IP Rating	IP67
Mounting	Base for Surface Mount
Working Temperature	-20℃~45℃
Storage Temperature	-30℃~50℃
Humidity	15%-90%RH
Certification	CE RoHS

Selection Guide

This 48W base-mounted version is intended for projects where the fixture will be installed on concrete, stone, decks, parapets, or other solid surfaces. It is a practical choice for courtyards, commercial plazas, hotel grounds, facade edges, and sculpture lighting where stable surface mounting is preferred over spike installation.

Related Mounting & Wattage Options

48W Landscape LED Spotlight with Spike for planting beds, lawns, and soil-based installation.
60W Landscape LED Spotlight with Base for stronger output on the same mounting style.
60W Landscape LED Spotlight with Spike for higher-output spike-mounted projects.
LED Compact Flood & Spot Lights to review related projection products.
Download Center for technical references, and contact us for project support and quotations.

Outdoor Spotlight Selection Notes

This 48W base-mounted landscape spotlight is used when a project needs adjustable outdoor accent lighting rather than general area lighting. The right model should be selected by target distance, beam angle, mounting method, glare direction and control requirement. For B2B procurement, confirm the installation environment and quantity by lighting zone before finalizing the order.

Best-Fit Applications

The 48W model is suitable for medium landscape projection, wall accents, commercial garden zones and hard-surface mounting positions. Use narrower beam angles for taller or more distant targets, and wider beam angles for softer coverage at short distance. If the site combines several wattages, group fixtures by function so the final effect looks consistent across paths, gardens, walls and facade details.

Installation and Glare Planning

Confirm the base, bracket, wall-side or compact flood/spot mounting position, cable direction, power supply position and possible glare before production. Outdoor projects often need small accessory decisions early, such as anti-glare parts, base kits or stronger ground fixing. Planning these details before shipment reduces field modification and helps the installer keep every fixture aimed correctly.

Quotation Checklist for Project Buyers

Application area, target size and approximate projection distance.
Preferred beam angle, color temperature or RGB/RGBW requirement.
Mounting method, cable route, power supply position and quantity per zone.
Control method: on/off, dimming or DMX512 if required by the project.
Drawings, IES files or datasheets needed from the download center.

Related Outdoor Spotlight Options

Compare nearby wattages and mounting styles before confirming the BOM. Lower wattages control glare and cost on short-distance details, while higher wattages help with larger targets and longer throw. For broader selection, review the related outdoor spotlight category, high-power flood light category, and the beam angle/IP/DMX512 guide.

FAQ

How do I choose the right wattage?
Match the wattage to target size, projection distance and mounting height. A site photo or layout drawing makes the recommendation more accurate.

What should be confirmed before ordering?
Confirm beam angle, mounting method, cable route, control requirement, quantity per zone and any accessory requirement before production.

Related guides for project selection

Review the flood light accessories guide. Review the beam angle guide. Review the technical quotation confirmation guide. For documents and quotation details, use the download center or contact Radiant Honor for project support.
