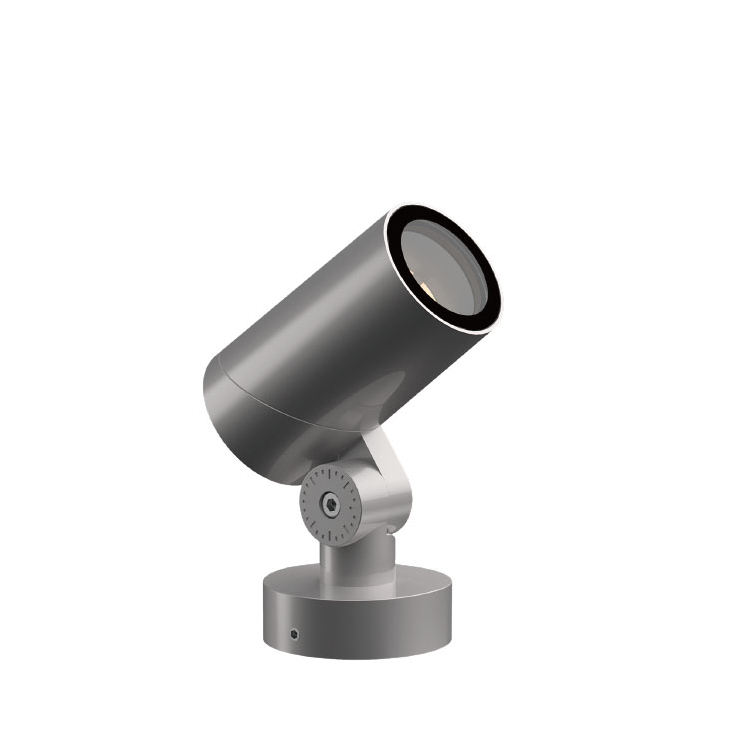

Name: S Series LED Garden Spike Lights | 1W-15W Low-Power Landscape Accent Lighting
Brand: Radiant Honor
SKU: RH-120

Products Description

S Series IP65 LED Night & Garden Light

Low-Power Outdoor Accent Lighting | 1W – 15W

Project selection path: When specifying S Series LED Garden Spike Lights, compare 3W Mini LED Garden Spike Spotlight | IP66 RGBW DMX Accent Light, Z Series COB LED Landscape Spot Lights | 10W-30W Outdoor Accent Lighting, 3W Square LED Spotlight | IP67 Garden Wall Accent Light, How to Choose Outdoor Lighting for Villas, Parks, Hotels, and Facades to confirm beam angle, mounting, glare control, waterproof protection and quotation details before final selection.

Product Overview

The S Series is a compact, energy-efficient range of LED outdoor lights designed for decorative accent lighting in gardens, pathways, and architectural details. Available in five models from 1W to 15W with IP65 waterproof construction, these fixtures provide subtle, reliable illumination for residential and commercial landscapes.

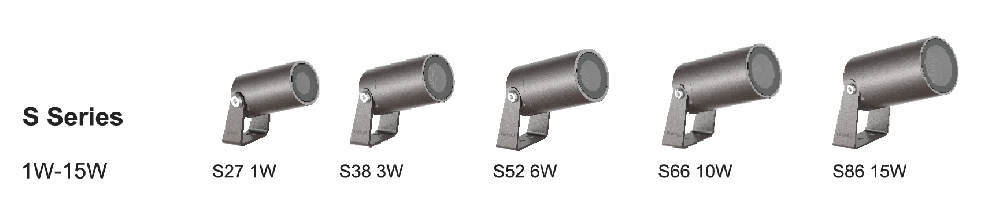

Series Models

Model	Power	Typical Applications
S27	1W	Pathway markers, step lights, tree accent, mailbox lighting
S38	3W	Garden focal points, wall wash, planter lighting, signage
S52	6W	Facade accents, pathway lighting, entrance illumination
S66	10W	Landscape features, wall washing, driveway lighting
S86	15W	Medium trees, commercial accents, parking area lighting

Key Features

Five Power Options
S27 (1W), S38 (3W), S52 (6W), S66 (10W), and S86 (15W) to suit various accent lighting needs.
Energy Efficient
High-lumen-per-watt LED technology reduces energy consumption while providing reliable illumination.
IP65 Waterproof Rating
Fully sealed against dust and low-pressure water jets, ensuring dependable performance in outdoor environments.
Compact & Versatile Design
Small form factor allows installation in tight spaces, suitable for gardens, pathways, and architectural details.
Durable Construction
Die-cast aluminum housing with tempered glass lens for long-lasting durability.
Easy Installation
Compact size with flexible mounting options for wall, ground, or tree installation.
Optional Color Temperatures
Available in 3000K (warm white), 4000K (neutral white), or RGB color-changing variants.

Applications

Garden and landscape accent lighting
Pathway and driveway illumination
Step and stair lighting
Wall washing and facade details
Tree and planter uplighting
Entrance and doorway accent
Commercial signage and display lighting

Technical Specifications

Specification	S27	S38	S52	S66	S86
Power	1W	3W	6W	10W	15W
Model Code	S27	S38	S52	S66	S86
Light Source	High-power LED	High-power LED	High-power LED	High-power LED	High-power LED
Beam Angle	30° / 60° / 120°	30° / 60° / 120°	30° / 60° / 120°	30° / 60° / 120°	30° / 60° / 120°
Input Voltage	DC 12V / 24V or AC 100–277V	DC 12V / 24V or AC 100–277V	DC 12V / 24V or AC 100–277V	DC 12V / 24V or AC 100–277V	DC 12V / 24V or AC 100–277V
Waterproof Rating	IP65	IP65	IP65	IP65	IP65
Housing Material	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum
Lens Material	Tempered glass	Tempered glass	Tempered glass	Tempered glass	Tempered glass
Color Temperature	3000K / 4000K / RGB	3000K / 4000K / RGB	3000K / 4000K / RGB	3000K / 4000K / RGB	3000K / 4000K / RGB
Operating Temp	-20°C to +50°C	-20°C to +50°C	-20°C to +50°C	-20°C to +50°C	-20°C to +50°C
Lifespan	≥50,000 hours	≥50,000 hours	≥50,000 hours	≥50,000 hours	≥50,000 hours

Selection Guide

S Series is designed for low-power landscape projects such as villas, planting beds, garden edges, pathways, and small tree accents. It is the right starting point when a project needs discreet fixture size, simple installation, and controlled accent lighting rather than large-area flood output.

Procurement Checklist for This Model

This S Series IP66 LED garden light is mainly used for garden features, public landscape zones and outdoor architectural accent lighting. Before confirming the order, review the practical project details below so the selected fixture, beam angle, mounting method and control option match the real installation environment.

Application zone, target size and approximate projection or viewing distance.
Mounting method, mounting height, cable direction and maintenance access.
Beam angle, color temperature, RGB/RGBW, dimming or DMX512 requirement.
Outdoor exposure, glare direction, accessory requirement and power supply position.
Drawings, IES files, datasheets or installation references needed from the download center.
