MA42 3W In-Ground Light | Beam and Cut-Out Guide

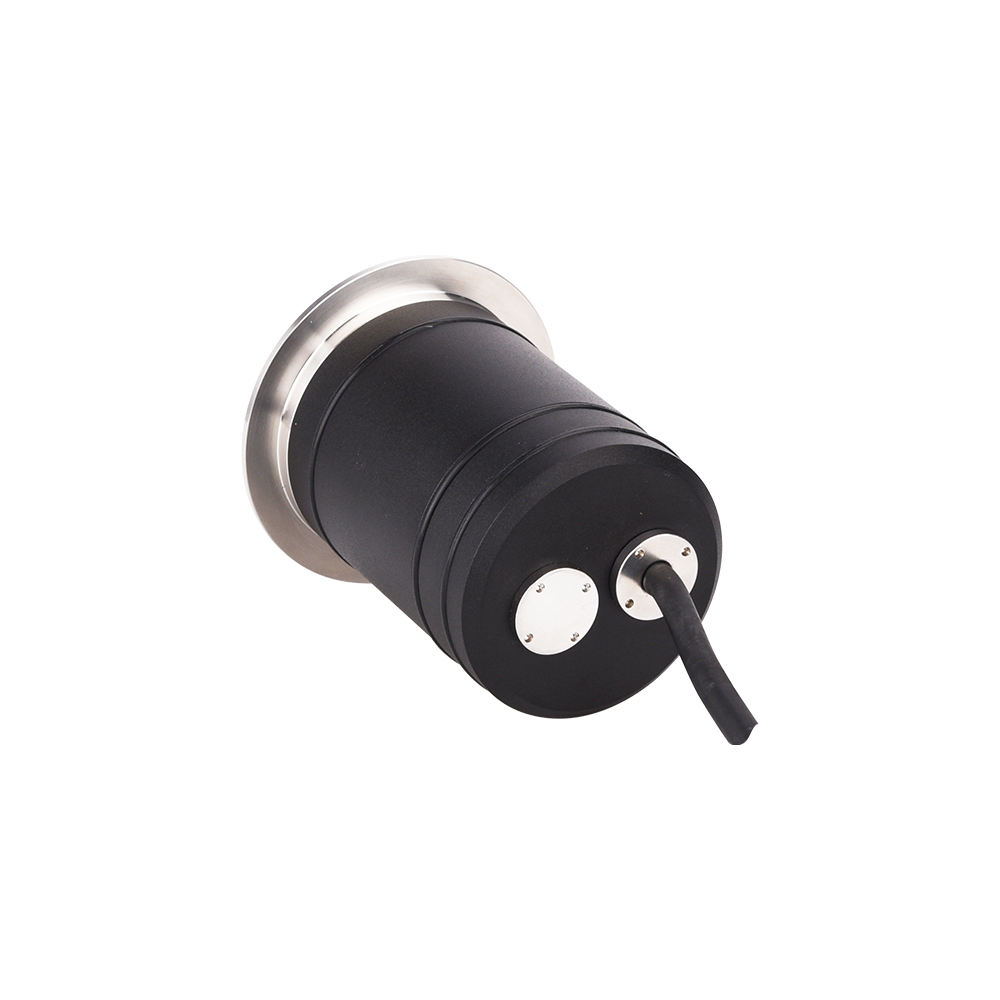

MA42 3W in-ground light is a compact MA Series underground fixture for recessed accent planning around steps, paths, courtyards, entrance edges and small architectural details. Current customer material supports the MA42 model, 3W power identity, lens and cut-out dimensions, beam-angle options, anti-glare solution families and panel-solution families. Project teams should still confirm the final protection target, color plan, control method and document package for the specific installation.

What is source-backed for MA42?

The source-backed core is narrow and useful: MA42 belongs to the MA Series underground lights, uses a 3W product identity, lists 3535 5W as the light-source specification, and gives lens, lamp and cut-out dimensions. Public copy should not turn this into unsupported fixed claims about protection grade, controller protocol, color-output default, document status, availability or service promise.

Where does MA42 fit best?

MA42 is best framed as a compact recessed accent light for close-range visual guidance and detail emphasis. It can sit in a path, entrance edge, courtyard line, small tree-pit accent or facade-adjacent paving detail where the lighting plan needs a controlled point of light rather than a high-output projector.

How should the lens angle be selected?

The MA42 source lists 8, 10, 15, 24, 36, 50 and 60 degree lens-angle options. A tighter beam can emphasize a narrow feature or vertical detail, while a wider beam can soften the accent across a broader nearby surface. The best choice should be tied to fixture position, object distance, surface reflectance and glare control.

How should cut-out and installation fit be checked?

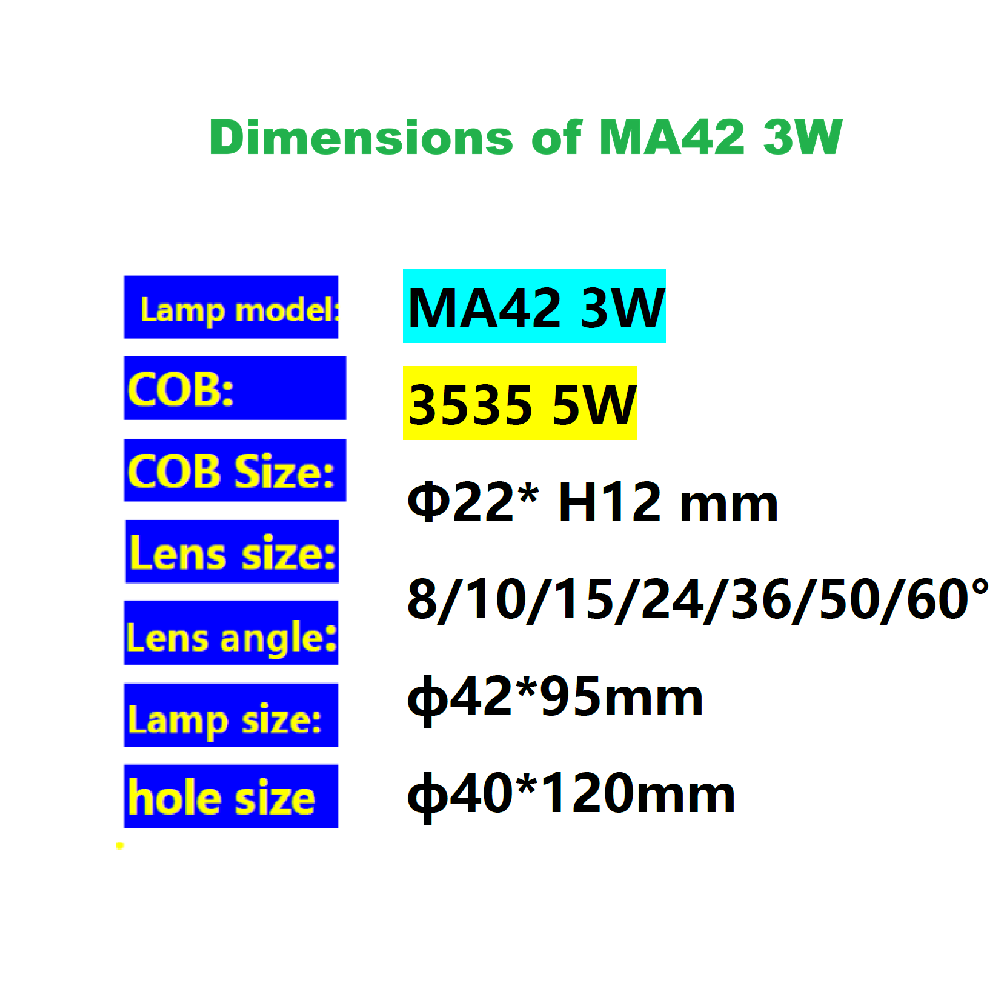

The source-backed lamp size is Phi 42 x 95 mm and the cut-out size is Phi 40 x 120 mm. These values should be used early in layout coordination, especially where stone, deck boards, paving modules or planter edges leave little margin for adjustment. The final installation still needs confirmation against the actual site surface and construction detail.

Which anti-glare direction should be discussed?

MA Series material supports deep cup with honeycomb core, radar dome with honeycomb core, deep cup anti-glare feature and radar dome anti-glare function. The right direction depends on whether the fixture is seen from above, across a path, near seating, near a facade or from a vehicle approach.

Which panel solution can match the design?

The source lists round, square, semi, dual, triple and quad panel-solution families. These should be discussed as design directions, not as assumptions for every project. The selected panel should match paving geometry, fixture grouping, visual rhythm and the overall luminaire family used around the site.

What buyer inputs are needed before quotation?

A reliable MA42 quotation should start with the scene, quantity, cut-out coordination, beam-angle direction, color plan, control method, protection target and document needs. These inputs keep the page useful for search while staying fact-safe, because they ask for project data instead of claiming unsupported defaults.

How can MA42 connect with the wider lighting plan?

MA42 can sit within a broader outdoor lighting package as the compact recessed accent point. For a complete plan, buyers can compare the wider compact flood and recessed accent category, the in-ground lighting selection guide, the outdoor lighting project guide, adjacent garden spike lighting, wall lighting, downloadable material in the download center and project discussion through contact.
